BOOM SPECIFICATIONS
Number of booms | 5 | un |
Folding type | RZ | type |
Vertical reach | 51.2 | m |
Horizontal reach | 47.4 | mm |
Reach depth | 40.9 | m |
Unfolding height | 11 | m |
Delivery line | 125 | mm |
End hose length | 4 | m |
Outrigger spread - Front | 9.4 | m |
Outrigger spread - Rear | 12.5 | m |
OUTRIGGER DIAGRAM
PUMP SPECIFICATIONS
Maximum output | 160 m³/h |
Concrete pressure | 70 bar |
Stroke per min. | 30 str |
Delivery cylinder | 230 Ø |
S-Valve | Ø200 x Ø180 mm |
Hydraulic system pressure | 350 bar |
Hydraulic system | OPEN type |
Hydraulic pump | Rexroth |
Hopper capacity | 600 L |
Oil tank capacity | 500 L |
Max. aggregate size | 40 mm |
Water pump pressure | 20 bar |
Water tank capacity | 500 L |
UNFOLDING HIGHT
WORKING DIAGRAM

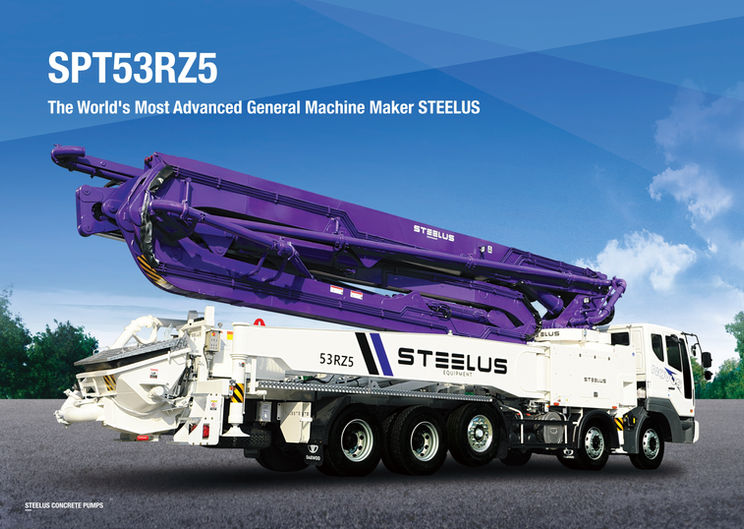

TRUCK MOUNTED CONCRETE PUMP
SUPPLY SCOPE (STANDARD)
- Sponge ball catcher for priming port |
- Hydraulic hose protection |
- Horn at the last section of boom |
- Electric vibrator |
- Waterproof working lights |
- Water hose with nozzle (10m) |
- Auxiliary fuel tank on side rear outrigger |
- Water pump (20bar) |
- Water tank (500L) |
- Auto grease system for hopper |
- Plastic hopper cover |
- Aluminum platform |
- Tungsten carbide wear ring & plate |
- Hard chromed concrete cylinder |
- Hydraulic changing system |
OPTIONS
- OSS system (One Side Safety System) |
- Safety device for hopper |
- Auto grease system for boom & turning base |
- Customized color |
- Rear view camera |
- Rear view camera |
- High-pressure washer |
- Heater for water tank |
- Twin wall pipes & elbows |
